Quad-core 4G main board industry customized reservation mtk 6737

FOB Reference Price:Get Latest Price
$24.00 - $29.80 / Piece | 100 Piece/Pieces (Min. Order)
Samples:
$148.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
MTK
Model Number:
PCBA
Number of Layers:
4-layer
Base Material:
FR-4
Copper Thickness:
1oz
Board Thickness:
1.6mm
Min. Hole Size:
0.25mm
Min. Line Width:
0.1mm(Flash Gold)/0.15mm(HASL)
Min. Line Spacing:
0.003"
Surface Finishing:
HASL
color:
blue
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month main board circuit board
Packaging & Delivery
Packaging Details
Board size :
Port
SHEKOU
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 To be negotiated



 MTK6737 Tablet core board ,three proof hand-held device core board  Octa-core board

 -customize core board for three proof hand held terminals/industrial tablet/ GPS navigation

                        can share original code & SDK software


Quad-core Dual SIM Card (64bits for option )customize screen size from 3.5to 24inch , resolution 1080P



Function selection:

RFID / 1D + 2D scanning / IC card reading / fingerprint recognition


Introduction to the core board:

MTK6737 can used in UVA (unmanned aerial vehical ) industrial tablet ,3-proof  terminal, PDA terminal ,equipped with Octa-core CPU android OS, Speedy velocity


Product  introduction:
MTK6737 board layout is more compact in structure, Standard size 55mm * 40mm, suit for  items with high requirement with structure & size. Equipped with android 7.0 OS ,CPU reach up to octa-core  , 1Ghz, RAM: 1GB + 8GB; open 154 pin , can customize to your needs . Core board integrated wifi / 4G / GPS / Bluetooth 4.0 / FM, can extend 1D /2D barcode scanning, NFC data transferring and reading , RFID card, IC card, fingerprint recognition . This core board can widely used in smart phones, PDA , UAV ,automotive system, smart home, 3-proof tablet, data terminal, car navigation etc .



Applications  :

Mobile phone/Tablet PC/Smart robot /Andriod PDA  etc.

.jpg



 Technical Parameters:

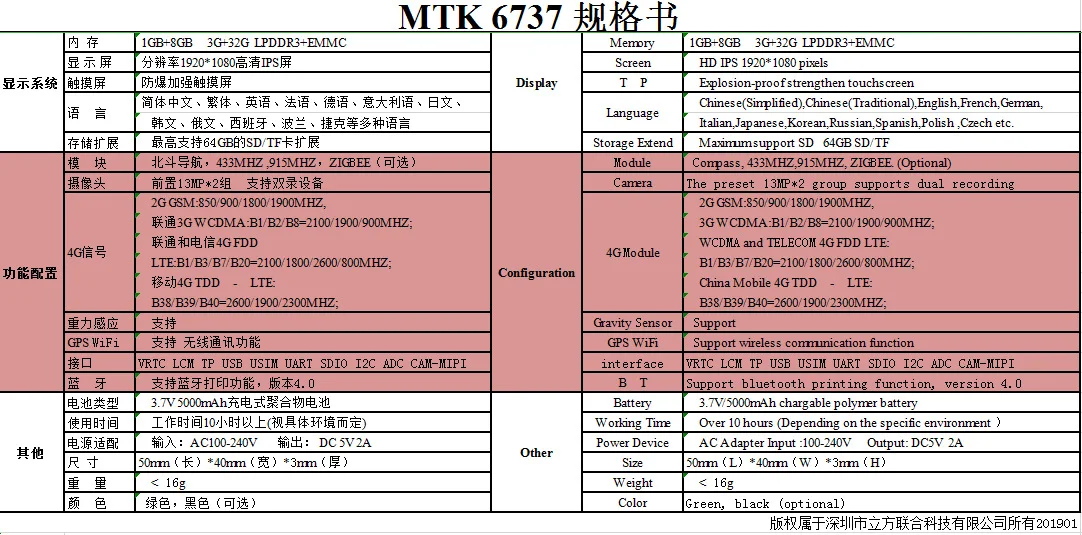

CPU  MTK6737 4G octa-core    main frequency 1.3G Hz
Storage   ROM:1G  RAM:8g  highest support LPDDR2/3 up to 2GB
Screen

 3.5’-24’ inch LED , support four line Mipi interface and RGB interface .

Supply    5V input voltage , CPU power supply , DC/DC buck, equipped 5V power .
Network 100Mbps low power consumption ,embedded internet chip DM9000C ,  interface is standard RJ45, integrated network transformer, safe and reliable .
Serial port Intergrated 4 channel high-speed serial port .(1.8V /2.8V )
Camera interface  5M /8M /13M mega pixels , reserve 20pin /24pin socket  convenient to connect digital camera .
Audio interface



 WM8976 chip , with mic ,3.5mm earphone interface .

USB Host   One USB host interface , USB full speed , can connect hub expansion .
USB device   One road USB device interface , USB full speed
Micro SD card interface   support Micro SD /TF card , highest up to to 32G .
Bus expansion Through double row needle interface to provide  external expansion . Integration bus.
Touch panel interface  Support resistive and capacitive interface .
RTC                 support RTC wake up .
Storage card interface   support SD/SDHC /MS/MSPRO/MMC and SDIO2.0
Power

 whole board 4.2V+/-5% power supply .

Modle pin  192 pin
PCB board floor  eight layers perfect design ,HDI handling technology



Product Features :

1.Small size , multipal interface ,low power consumption ,steady performance

2.High rugged , Pin more than 154 pin .

3.Widely application ,(Widely used in smart mobile phone ,PDA , Car guidance system .

4. Perfect design of eight layers two class ,HDMI making technology , layout completely considering EMC /EMI .

5. Abundant reference design of software and hardware , Have unique program for the high frequency.



MTK6737PIN Definition:









Successful case:First Application



8



Second Example Application :
